12 Problems Related to print head, Organized by Symptom

Includes 2 Field Diagnostic Tables · Sequence: Symptom → Hypothesis → Inspection → Solution

Common frustrations in UV printer operation:

“The head is new, so why is a specific color missing?”
“The nozzle test is fine, but the printed image is distorted.”
“I replaced the ink thinking it was the issue, but nothing changed.”

Ink supply issues and head DATA issues often look identical. Misdiagnosis leads to wasted time and unnecessary replacement of perfectly good heads.

Goal of this guide: Quickly distinguish DATA issues that look like ink supply problems and minimize unnecessary part replacement costs.

Who should read this?

When specific colors are missing or inaccurate during printing.
When nozzle tests are normal but the printed image is distorted.
When the same issue persists even after replacing the head.
Engineers/Operators who need to quickly distinguish between ink supply and DATA/Head issues.

Caution

Avoid replacing the head first. This significantly increases costs. Always use “Swap Testing” to narrow down the cause.
Excessive alcohol cleaning can cause terminal shorts or malfunctions. Follow safety protocols carefully.
Reflective materials and static can create DATA interference. Be aware of your printing environment.

Key Summary (5 Lines)

Apparent ink supply issues may actually be DATA (signal) issues.
The safest Swap Test sequence: Damper → Cable → Head.
DATA issues often show regular patterns; head issues are usually irregular.

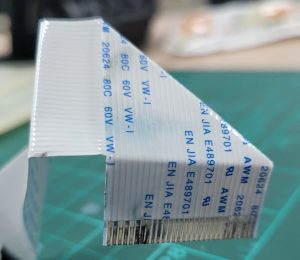

The DATA cable is the printer’s nervous system. Minor contamination leads to major failure.
To save costs, replace parts in order from least to most expensive.

Ⅰ. Symptom-Based DATA Diagnostic Table (Field Response) _12 Problems Related to print head

Emergency diagnostic table to find causes based on “Symptoms currently appearing on your printer.”
Click the Reference Number in the table to jump to the detailed guide (Parts 1-12/Extra).

One-Line Diagnostic Rule:
DATA issues are likely to be “regular,” while head issues are often “irregular.”

Symptom	Nozzle Pattern Image	Likely Cause	Quick Judgment	Ref.
Specific color completely missing	No pattern at all	DATA cable disconnected or misconnected	Check cable for: * Ink contamination * Peeling connectors * Pin alignment	① ⑧ ⑫

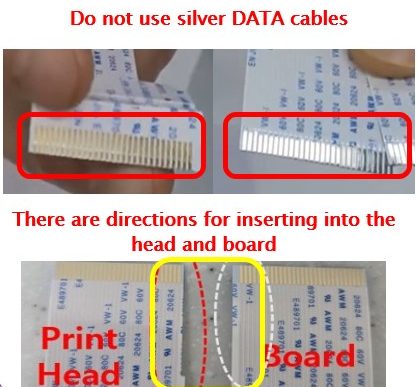

Color Swapping	Output positions shifted	Cable reversed (upside down)	Reinstall terminal / check pins	① ⑧ ⑫

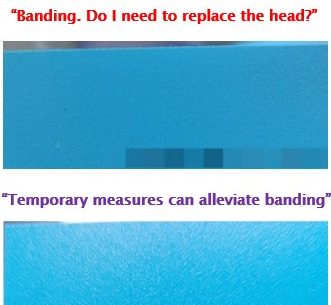

Single color banding	Consistent repeating intervals	Nozzle condition or head lifespan	Check if banding is repetitive	⑥ ⑦
Normal nozzle, distorted image	Abnormalities in specific image areas	RIP data/signal distortion/head lifespan	Reprint file / Resend data / Head lifespan	③ ⑨
Same issue after head replacement	Defective channel persists	Mainboard or Cable	Board Port Swap	⑥ ⑪
Malfunction after cleaning	Short circuit immediately after cleaning	Excessive alcohol cleaning	If issue persists after new cable, head is damaged	②
Reflective Material Printing	–	Sudden stop in jetting	Suspect head clogging	④
White output failure	No output after long idle period	Physical white ink clogging inside head (Don’t mistake for DATA issue)	Check lines after cleaning / Alcohol cleaning method	⑤ ⓔ
Ink leakage & color mixing	Color bleeding / Mixing	Internal head line damage	Check if persists after Damper Swap	⑩

Ⅱ. DATA Issue Classification by Root Cause (Understanding the Structure) _12 Problems Related to print head

Identify the “Source of the problem” to prevent recurrence. If the same symptom repeats, use this classification to organize causes.

Category	Key Causes & Elements	Representative Symptom	Characteristics	Ref.
A. DATA Cable	Contamination, pin damage, reverse insertion	Color swapping, complete non-output	Symptom moves during Swap Test	① ⑧ ⑫

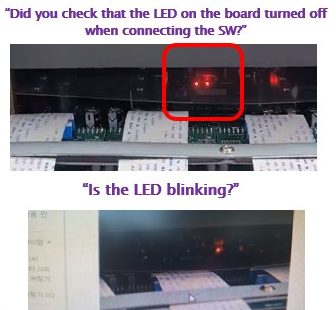

B. Signals & Board	Mainboard ports, Signal noise	Specific or all channels dead	Symptom moves during Port Swap	⑥ ⑨
C. Head Hardware	End of life, Line damage	Irregular nozzle missing, leakage	Symptom stays after Swap Test	⑥ ⑩ ⑪
D. Maintenance	Excessive alcohol usage	Short circuit & malfunction	Occurs immediately after cleaning	②
E. Environment	Static electricity, reflective materials	Head clogging, ink misting	Temperature and Head height	④
F. White Ink Specifics	Sedimentation/Hardening after idle	Partial or complete white non-output	Warning: Don’t mistake for DATA issue	⑤ ⓔ

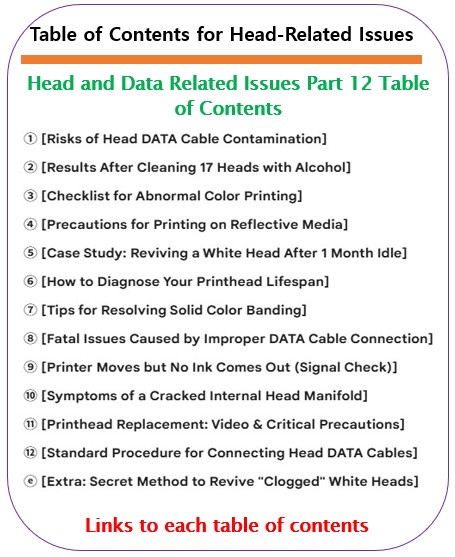

Ⅲ. DATA Series 12 Parts + Extra: Detailed Guides _12 Problems Related to print head

Click the numbers mentioned in the table to move to the detailed solution. Each post includes actual field cases, inspection sequences, and precautions.

① Risks of Head DATA Cable Contamination
