UV Printer Application 40 Stains in leather printing

UV Printer Application 40 Stains in leather printing

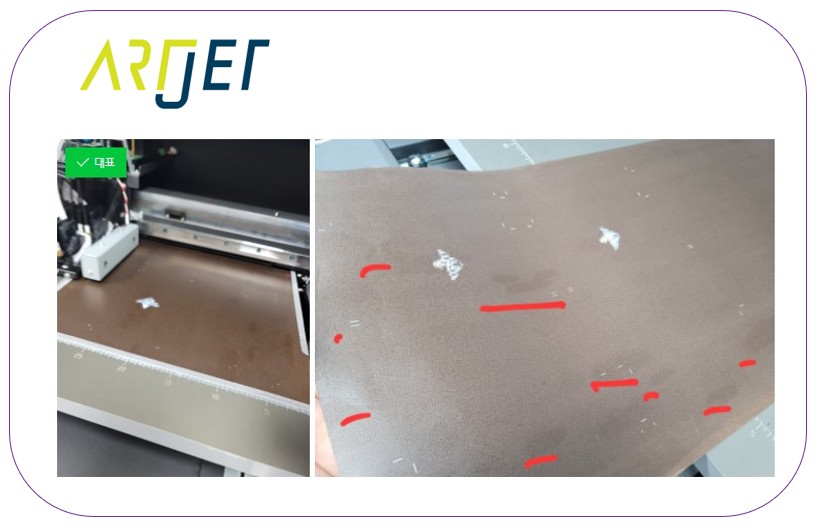

A stain appeared on the leather cover of the book three years ago. If you experience similar symptoms, please refer to the information below to resolve the issue.



I. strange stain_UV Printer Application 40 Stains in leather printing



1. Problem Cause Inference Process_UV Printer Application 40 Stains in leather printing

Suspected that Varnish has fallen

It is not the cause of the problem, but to clear up the representative’s doubt,

Lock Varnish (ARTJET SW has a function to lock each channel, if you lock it, that channel will not be ink jetted) and proceed with printing => Same symptom occurs



Is there oil on the part you touched by hand, and is there a stain after printing?

There are cases where similar stains occur when you touch the material with your hand and the oil hardens with the LED, so I asked several times,

They said that they only touched the outer part of the coated leather with their hands. => Not the cause of the problem



Isn’t it that the material itself was deformed due to the heat from the LED?

“CEO, the ink will spread, but I suspect it’s the heat from the lamp, so please turn off the lamp power and print the same way.”

=> The ink spread, but the stains that were not on the printed surface disappeared.

2. Troubleshooting_UV Printer Application 40 Stains in leather printing



The material in question is currently used only by the CEO, and we do not have it, so I told the CEO the following.

“CEO, now you need to find a lamp power condition that is stain-free and white-curable. Please increase the main lamp jog to 20%, 30%, etc. and test it.”

“40% lamp power, no stains, and the white is well-attached.”



I have tested artificial leather and natural leather for a long time, but I have never had this problem.

The material that the CEO is using this time seems to be a coating that is weak to heat.





III. This is how Artjet supports our customers.

ARTJET UV Printer has been sold in Korea for 5 years, and we are organizing the printer problems we have encountered so far, their causes, and their solutions.



1. Printhead Problems and Solutions Total 10

ARTJET UV Printer Problems and Solution_Printhead Problems Summary



2. Ink Supply Problems and Solutions Total 17

ARTJET UV Printer Problems and Solutions_Ink Supply Problems Summary



3. Mechanical problem and Solutions

In the first session, ARTJET UV Printer Troubleshooting Mechanical 1 _ How to align the print head in a straight line
In the second section, ARTJET UV Printer Troubleshooting Mechanical 2 _There is a clicking noise from the X-axis
In the third section, ARTJET UV Printer Troubleshooting Mechanical 3 _ Banding problem in specific section
In the fourth section, ARTJET UV Printer Troubleshooting Mechanical 4 _ The Importance of Head Height in Bidirectional Printing
In the fifth section, ARTJET UV Printer Troubleshooting Mechanical 5 _ Problems that occur when the wiper height is high
In the sixth section, ARTJET UV Printer Troubleshooting Mechanical 6 _ When the cleaning belt screw is loose
In the seventh section, ARTJET UV Printer Troubleshooting Mechanical 7 _When the capping fixing plate does not fit
In the eighth section, ARTJET UV Printer Troubleshooting Mechanical 8 _How do I prepare the ARTJET electricity?

4. Electron board and Software problem is hereunder.

In the first session, ARTJET UV Printer Troubleshooting Electron & SW 1 _ The printer works but printing does not work
In the second session, ARTJET UV Printer Troubleshooting Electron & SW 2 _ Resetting to default settings
In the third session, ARTJET UV Printer Troubleshooting Electron & SW 3 _ Touch panel does not turn on
In the fourth session, ARTJET UV Printer Troubleshooting Electron & SW 4 _ The printer is printing, but nothing is printed
In the fifth session, ARTJET UV Printer Troubleshooting Electron & SW 5 _ Software closes when I just press the print button
In the sixth session, ARTJET UV Printer Troubleshot Rip _ White lines appear when printing only color



5. Problems and solutions from actual consumer sites

In the first section ARTJET UV Printer Consumer Issues and Solutions 1 _ White does not come out at all.
In the second section ARTJET UV Printer Consumer Issues and Resolution 2 _ The nozzle test is fine, but it seems that a certain color is not coming out during printing
In the third section ARTJET UV Printer Consumer Issues and Resolution 3 _ The red color does not appear at first, then appears during printing, and then does not appear again
In the fourth section ARTJET UV Printer Consumer Issues Reception and Resolution 4 _ Sai Flexi Lip Installation and Dongle Key Recognition Failure Measures
In the fifth section ARTJET UV Printer Consumer Issues and Resolution 5 _ Sai Flexi Lip Dongle Key Recognition Failure
In the sixth section ARTJET UV Printer Consumer Issues and Solutions 6 – Paper that absorbs ink
In the seventh section ARTJET UV Printer Consumer Problems and Solutions 6 – White Motor Pump Does Not Turn
In the eighth section, ARTJET UV Printer Consumer Problems and Solutions 6_Pumping does not work after head replacement
In the ninth section,  ARTJET UV Printer Consumer Problems and Solutions 7 _ White lines appear
In the tenth section, ARTJET UV Printer Consumer Problems and Solutions 8 _ A line-like thing appears at the end of the white print surface
In the eleventh section, ARTJET UV Printer Consumer Problems and Solutions 9 _ When Anti-crash becomes a jam in captop
In the twelve section, ARTJET UV Printer Consumer Problems and Solutions 10 _ Can I ignore the ink alarm and use it?
In the thirteen section ARTJET UV Printer Consumer Issues and Solutions 11 _ Can varnish banding be reduced?



6. Rip software

In the first session, ARTJET UV Printer Troubleshoot Creating Rip Spot Color
In the second session, ARTJET UV Printer Troubleshot Rip _ The color is strange after applying Spot color
In the third session, ARTJET UV Printer Troubleshot Rip_ White is sticking out



7. UV Printer Application

we are explaining not only UV printer problems and solutions, but also what products are produced with UV printers.

In the first session, ARTJET UV Printer Application 1 braille printing
In the second session, ARTJET UV Printer Application 2 Flip the material and align it
In the third session, ARTJET UV Printer Application 3  2.5D UV print
In the fourth  session, Sai rip [Color Adjustment] tab. ARTJET UV Printer Application 4 Sai rip color graph
In the fifth  session, ARTJET UV Printer Application 5 Sai rip print size compensation
In the sixth session, we talked about the acrylic bonding equipment that those who have UV printers and laser cutting equipment are looking for.
Hereunder is only Korean since only Korea is hot on this machine.  ARTJET UV Printer Application 6 _아크릴 본딩 장비
In the seventh session  ARTJET UV Printer Application 7 _ Ink Consumption Calculation
In the Eighth session, ARTJET UV Printer Application 8 _ I phone 14 print limitation
About K print, Korea Signage Label & special printing exhibition, ARTJET UV Printer Market research 1 _ K Print 2024 Korea printing exhibition
In the ninth session, ARTJET UV Printer Application 9 _ Mask printing not recommend
In the tenth session, ARTJET UV Printer Application 10 _ Leather Cigarette Case UV Printing
In the eleventh session, ARTJET UV Printer Application 11 _ Round soccer strategy board UV printing
In the twelve session,  ARTJET UV Printer Application 12 _ What is ICC profile & menu board UV Printing
In the thirteen session, ARTJET UV Printer Application 13 _ Primer  performance & limitation
In the fourteen session, ARTJET UV Printer Application 14 _ UV Print & Laser crop mark cutting
In the fifteen session, ARTJET UV Printer Application 15 _ Mobil case UV print profit
In the sixteen session, ARTJET UV Printer Application 16 _ Screen vs Digital Comparison and UV Printing on Hand Sanitizer Cases
In the seventeen session, ARTJET UV Printer Application 17 _ bottle print
In the eighteen session, ARTJET UV Printer Application 18 _ Canvas UV Printing
In the nineteen session, ARTJET UV Printer Application 19 _ Applying epoxy effect with varnish
In the twenty session, ARTJET UV Printer Application 20 _ Making a light frame with a printer+laser cutter
In the twenty one session, ARTJET UV Printer Application 21 _ UV Printer+Laser Cutting Equipment Button Name Tag Making
In the twenty two session, ARTJET UV Printer Application 21 _ UV Printer+Laser Cutting Making a Cell Phone Grip Tok
In the twenty three session, ARTJET UV Printer Application 23 _ UV Printer+Laser cutting Making an Acrylic Keychain
In the twenty four session, ARTJET UV Printer Application 24 _ UV Print with Zig
In the twenty five session, ARTJET UV Printer Application 25 _ How to make RD WORKS CCD camera cutting Video manual
In the twenty six session, ARTJET UV Printer Application 26 _ Acrylic bonding equipment
In the twenty seven session ARTJET UV Printer Application 27 _ All the steps to create UVDTF
In the twenty eight session ARTJET UV Printer Application 28 _ Simple troubleshooting & Captop replacement time
In the twenty nine session ARTJET UV Printer Application 29 _ UVDTF TEST Result
In the thirty session ARTJET UV Printer Application 30 _ Print head Anti crash system
In the thirty one session ARTJET UV Printer Application 31 _ Offset fine tune
In the thirty two session ARTJET UV Printer Application 32 _ ARTJET Delivery Preparation
In the thirty three session ARTJET UV Printer Application 33 _ ARTJET Setting Sequence
In the thirty four session ARTJET UV Printer Application 34 _ ARTJET CW+C Print time & ink cost
In the thirty five session ARTJET UV Printer Application 35 _ Create a white shield with different images on the front and back of the keyring
In the thirty Six session ARTJET UV Printer Application 36 _ Vertical offset is not correct only for the right section of white
In the thirty Seven session ARTJET UV Printer Application 37 _Keyring Business Required Equipment and Investment Costs
In the thirty Eight session ARTJET UV Printer Application 38 _ Acrylic Lighting Goods
In the thirty nine session ARTJET UV Printer Application 39 _ Ballpoint pen jig printing





That’s it for today.
