ARTJET UV Printer Troubleshooting Mechanical 6 _ When the cleaning belt screw is loose
I. Problem
1. Printer history
This equipment was operated 24 hours a day in two shifts for a year,
and it has been used for 2 years and 6 months since it was delivered after repair.
This equipment has been used for a total of 3 years and 6 months.
2. Problem Symptoms
There is no error message when running print head cleaning, but the wiper blade does not move back and forth,
and the print head is not cleaned properly.
II. Troubleshooting
1. if?
Since this is my first time encountering this problem, I can guess the cause.
- Is it a motor problem?
- Is it that the limit sensor is not detected properly during cleaning?
- Or is the belt tension too tight?
- Or is the belt itself worn out?
- Or is it too contaminated with ink and hindering movement?
2. no way?

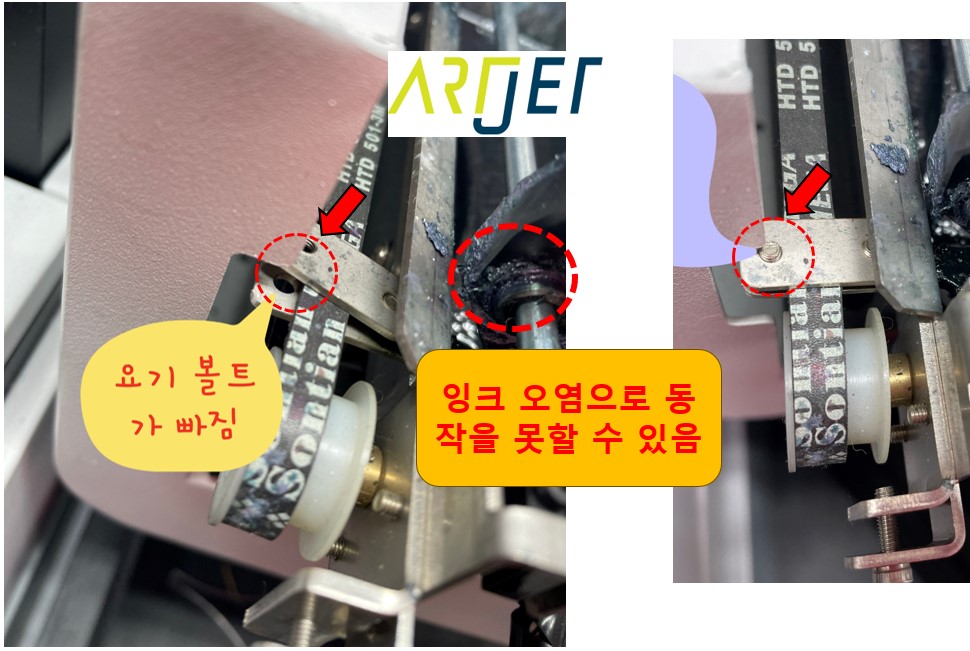

After 3 years and 6 months, even the belt screw is loose.
And, one of my old customers didn’t pay any attention to the equipment, and he said that the cleaning operation didn’t work,
so I told him to clean the ink contamination part well and try again, but he visited after requesting AS and only cleaned the ink contamination part.
- You should also clean the ink contamination on the bottom of the LED lamp (ink may block the LED light and prevent ink cure)
- You should also clean the wiper blade well (the print head nozzle may not work well even after cleaning due to ink contamination)
- You should also clean the captop blade well (if the captop blade is contaminated with ink, the print head seal may not work well and ink loading may not work well)
- You should also clean the printer well (during printing, the head carriage moves and the LED light continues to shine, which generates static electricity and causes surrounding dust to stick to the printed material)
