Today, I will explain about the time and ink cost for Color+White printing, Color printing, and double-sided printing.



I. “Can I print Color White Color (CWC) at the same time?” _CWC double-sided printing ink cost



1. CWC printing and CW printing followed by C printing method _CWC double-sided printing ink cost

I sometimes get asked, “Can’t I print CWC all at once?”

When I tell them CWC doesn’t work, they think, “That’s a poor feature.”

Let me explain why printing CW followed by color printing is better than printing CWC all at once.

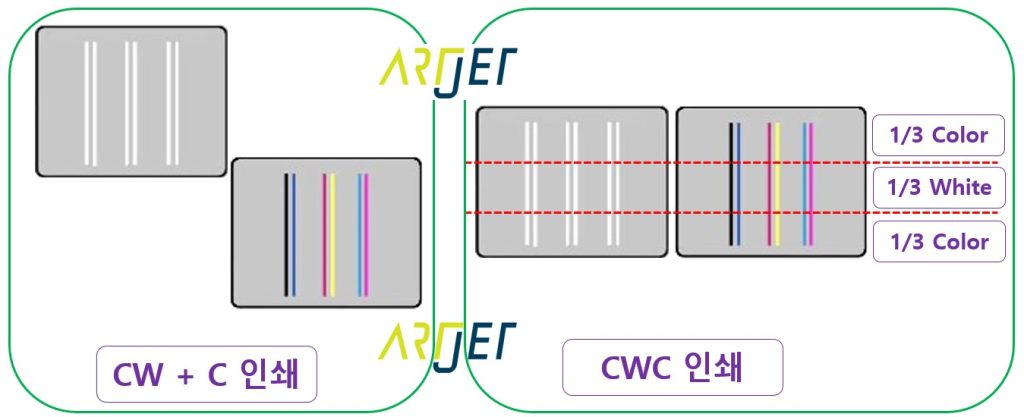

First, let’s explain the CWC printing method on the right:

• The front 1/3 of the Color Printhead prints only color,
• the white printhead 2/3 prints only white,
• and the rear 3/3 of the Color Printhead prints only color.

In other words, instead of using all nozzles on the Printhead, each nozzle is used 1/3 of the time, performing color + white + color printing simultaneously.

Since only 1/3 of the Printhead is used, the printing speed is reduced to 1/3, the same ratio.



Next, let’s explain the CW printing method after CW printing.

• Once the print head is fully used and CW printing is complete,
• only the color is reprinted.

In other words, the printing speed is the same whether CWC is printed all at once or CW is printed followed by color printing.

However, there is the inconvenience of having to manually select the image and press the color printing button to print the next color. However, if the next color image starts automatically, this inconvenience is eliminated.



CWC printing risks include:

• Since only 1/3 of the nozzle is used,
• the remaining 2/3 of the nozzle, unused, is continuously exposed to the LED lamp during printing,
• there is a risk of nozzle deterioration during long-term operation.
• Furthermore, narrowing the print head by 1/3 increases the risk of print banding.



2. If you only need to print CW _CWC double-sided printing ink cost



When printing only in Color White, rather than Color White, the left print head uses all the print heads, so speed does not decrease.



However, if the head arrangement is such that CWC can be printed simultaneously, as shown on the right,

• when printing Color White,
• half of the print heads are used for Color,
• and the other half for White,
• so the printing speed is doubled.



II. ARTJET CW+C print speed _CWC double-sided printing ink cost

1. Image Ripping _CWC double-sided printing ink cost

Here are the actual printing times for the printers we sell.

• Printed image size: 596 x 287mm
• Resolution: 720 x 1080 dpi
• First Ripping: Color + White spot Ripping
• Second Ripping: Reload the same image file from RIP, set Spot 1 and Spot 2 to None, and then RIP only Color.

2. Printing method and time _CWC double-sided printing ink cost

III. CW+C printing ink cost _CWC double-sided printing ink cost



1. Ink consumption calculation option _CWC double-sided printing ink cost

Most UV printers consume a lot of ink for maintenance, but some customers are curious about the actual ink consumption of printed images when providing estimates.

You can estimate the ink consumption of images printed today using a feature in Rip software.

For images that have been ripped (the “Estimate” button will not be activated unless you load a new image and rip it), you can check ink consumption by clicking the “Estimate” option.

• By entering the amount and price of your current ink on the site below,
• you can view not only ink consumption but also ink costs.
• See below for instructions on using the “Estimate” option.

View ink consumption and ink costs at a glance

2. Ink consumption and cost _CWC double-sided printing ink cost



In the image below, the Rip SW data on the left is based on a single print of Color White.

Now, I’ll explain how to calculate ink consumption when printing Color White.

• The printed image was printed twice, with Color White simultaneously printed and then Color printed once more.
• White was printed once, but three times more. You can set the white ink density in ARTJET SW, and all six White channels were set to 50% (50% x 6 channels White = 300%), resulting in a 300% print.
• In other words, the data calculated at 2x for Color and 3x for White is shown in the Excel sheet on the right.

The keyring image above, after printing CW and then printing Color separately, used a total of 1.29ml of ink, costing 212.22 won.

IV. This is how ARTJET supports our customers.

One thing I feel while selling and maintaining ARTJET UV Printers for 5 years is that the next most important thing after product stability is Troubleshooting DATA.

All products have problems, whether they are actual equipment problems or consumer errors, and product stability is how easily and quickly you solve those problems.

We are organizing all the troubleshooting DATA as follows.

You can see the product print quality by clicking here.
